Skl14 Rail Clip for Railway Fastening System

Product Categories
Kunshan ALEX Railway Fastening Co., Ltd.
Contact Now

Skl14 Rail Clip for Railway Fastening System

Place of Origin : China

Brand Name : Alex

Certification : ISO SGS TUV

Model Number : 15040811

MOQ : 5000 Piece/Pieces

Price : 0.5~1.8 USD

Packaging Details : Clip Elastic package:Woven Bag/Kgs and Pallet of fumigation free

Delivery Time : 25 Days

Payment Terms : L/C,T/T,Western Union

Supply Ability : 20000 Piece/Pieces per Day

Contact Now

FOB Price: US $ 0.3 - 1.5 / Piece|Get Latest Price
Min.Order Quantity: 3000 Piece/Pieces Rail Mounting Clip E Tension Clamp
Supply Ability: 20000 Piece/Pieces per Day Rail Mounting Clip E Tension Clamp
Port: Shanghai
Payment Terms: L/C,T/T,Western Union

Railway fasteners supplier E1809 Railway Clip

Product Description

Skl14 Rail Clip for Railway Fastening System

FOB Price: US $ 0.3 - 1.5 / Piece|Get Latest Price
Min.Order Quantity: 3000 Piece/Pieces Rail Mounting SKL Tension Clamp
Supply Ability: 20000 Piece/Pieces per Day Rail Mounting Clip SKL Tension Clamp
Port: Shanghai
Payment Terms: L/C,T/T,Western Union

Railway fasteners supplier Clip

Product Description

Skl14 Rail Clip for Railway Fastening System

Name

Elastic Rail Clip, Railway Fastener, Railway Clip

Type

E clip (e1809, e2006,e2007,e2009,etc)

Skl clip (skl1,skl3,skl12,skl14)

Or the type by customers’ drawings

Material

60Si2MnA

60Si2CrA

55Si2Mn

38Si7

Chemical composition(%)

C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03

C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03

C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03

C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03

Hardness

For e clip: 44-48HRC

For skl clip: 42-47HRC

Fatigue life

for Dia.18 is 3 millions cycles without breaking

for Dia.20 is 5 millions cycles without breaking

Surface

plain (oiled), Oxide black, color painting, HDG, Zinc Plating...

Standard refers

DIN17221, BS970, GB/T1222

Skl14 Rail Clip for Railway Fastening SystemSkl14 Rail Clip for Railway Fastening System

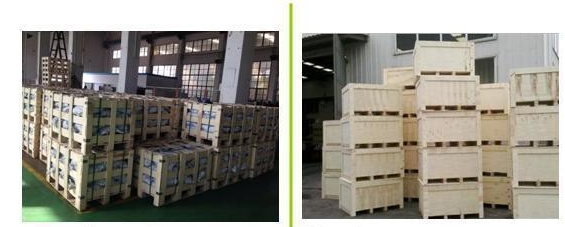

Packaging & Shipping

Skl14 Rail Clip for Railway Fastening System

Our Services

Skl14 Rail Clip for Railway Fastening System

We manufactures Rail E Clip and Clamp, High Tensile Bolt with Nut and Washer, Rail Base(Tie) Plate, Rail Fish Plate, Rail Shoulder, Rail Screw and Spike, Fish Bolt with Nut and Washer, Rail Dowel, Rubber and EVA Pad, Crane Rail and Light Rail, Wooden Sleeper, Auto Bolt and Other spare parts.

Company Information

Skl14 Rail Clip for Railway Fastening SystemSkl14 Rail Clip for Railway Fastening System

Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.
We can provide products according to customers drawings and samples.Our main products are as following:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.

2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip

3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts

4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad

5. Fish plate / Joint bar / Rail joint/ Splice Bar

6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt

7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip

8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers

9. Plastic dowel / Guide plate/ Nylon insert

We are trying to supply the best products at the best price!
