Nabla Tension Clamp railroad parts

Name: Nabla Tension Clamp railroad parts
Brand: Alex
Price: 1 USD

Place of Origin : China

Brand Name : Alex

Model Number : 15040908

Certification : ISO SGS TUV

Price : 0.5~1.8 USD

Packaging Details : Clip Elastic package:Woven Bag/Kgs and Pallet of fumigation free

Delivery Time : 25 Days

Payment Terms : L/C,T/T,Western Union

Supply Ability : 20000 Piece/Pieces per Day

MOQ : 5000 Piece/Pieces

Contact Now

Railway components supplier Railway Clip

Product Description

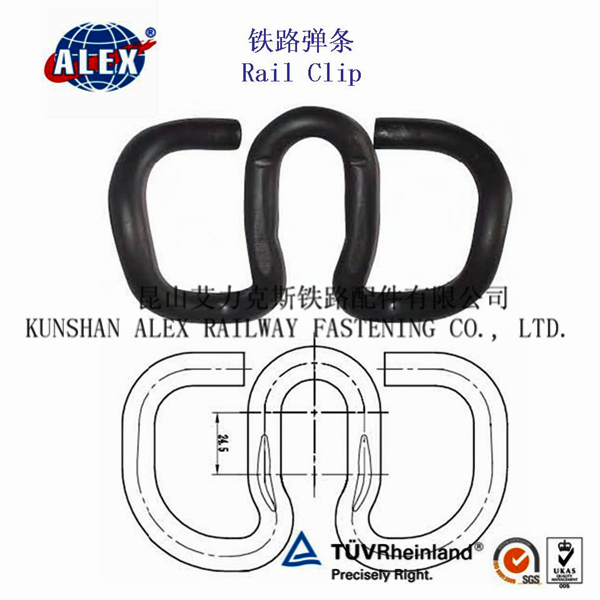

Name	Elastic Rail Clip, Railway Fastener, Railway Clip
Type	E clip (e1809, e2006,e2007,e2009,etc)
	Skl clip (skl1,skl3,skl12,skl14)
	Or the type by customers’ drawings
Material	60Si2MnA	60Si2CrA	55Si2Mn	38Si7
Chemical composition(%)	C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03	C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03	C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03	C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03
Hardness	For e clip: 44-48HRC For skl clip: 42-47HRC
Fatigue life	for Dia.18 is 3 millions cycles without breaking for Dia.20 is 5 millions cycles without breaking
Surface	plain (oiled), Oxide black, color painting, HDG, Zinc Plating...
Standard refers	DIN17221, BS970, GB/T1222

Nabla Tension Clamp railroad parts

Our Services

We manufactures Rail E Clip and Clamp, High Tensile Bolt with Nut and Washer, Rail Base(Tie) Plate, Rail Fish Plate, Rail Shoulder, Rail Screw and Spike, Fish Bolt with Nut and Washer, Rail Dowel, Rubber and EVA Pad, Crane Rail and Light Rail, Wooden Sleeper, Auto Bolt and Other spare parts.

Company Information

Nabla Tension Clamp railroad parts

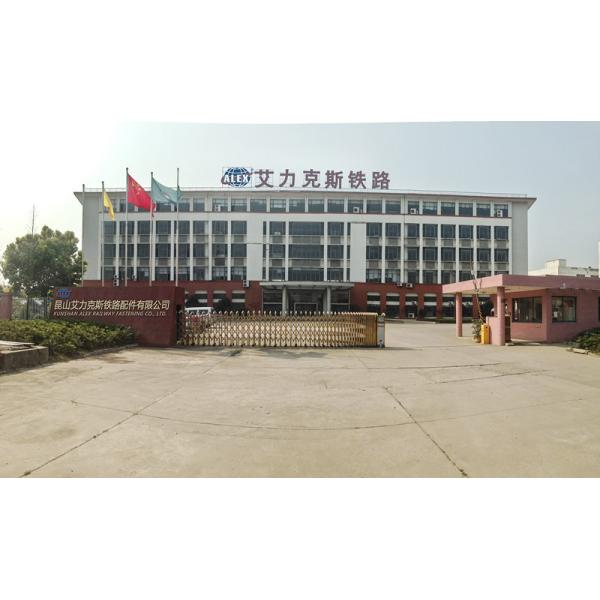

Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.
We can provide products according to customers drawings and samples.Our main products are as following:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.

2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip

3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts

4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad

5. Fish plate / Joint bar / Rail joint/ Splice Bar

6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt

7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip

8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers

9. Plastic dowel / Guide plate/ Nylon insert

We are trying to supply the best products at the best price!
